Product Description

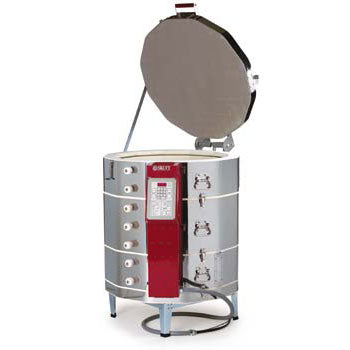

About the Skutt KM1231

Here is the high volume Cone 10 power you've been looking for.

Finally, an electric kiln line designed specifically for volume production and fast turnaround of high mass loads. It has the power and industrial components to go straight to Cone 10 with a full load of tile or stoneware – no slow struggling to reach the final temperature. The standard KilnMaster controller gives you the options of Cone Firing, or selecting your own 8-segment Ramp/Hold firing programs. The combination of direct wiring, heavy duty elements, connectors and relays, plus traditional Skutt stainless steel and firebrick construction results in a kiln that will last for years of constant use. Among the most powerful on the market today, the line was designed at the request of Skutt customers.

Standard Features
The Skutt KM-1231PK kiln includes the KilnMaster controller built in. Other standard features include:

  • 2 Year limited warranty, elements excluded
  • Encapsulate Type K thermocouple
  • Mercury Relays
  • Industrial gauge wiring
  • Compression connectors on feeder wires
  • Larger, swing away air cooled switch box
  • Multi-sided design
  • Stainless steel jacket
  • Sectionalized construction
  • Two lift handles on each section
  • Sealed, dust free lid with full-floating hinge
  • Three types of exposed, pinned elements for optimum balance
  • Reversible top and bottom slabs
  • Stand included
  • Peep plugs included
  • UL Listing

Skutt Lid Lift System



The New Skutt Lid Lifter

The New Lid Lifter makes Skutt 10 and 12-sided lids some of the lightest on the market. In fact you can now lift them with just a finger. The lid brace has been redesigned for added strength and now has 2 positions. The innovative Center Pivot Design distributes the force on the lid across 2 points as opposed to only one.

It ships fully assembled on the kiln. Unlike some other brands there is no awkward loading of the springs required. The kiln remains completely sectional for moving and repairs. The lid can be effortlessly and safely detensioned by simply raising the lid and sliding out the tension rod. It really is that easy!

  • So Light You Can Lift It With A Finger
  • New Reinforced 2 position lid Brace
  • Innovative Center Pivot Design
  • Ships Fully Assembled
  • No Tension Loading Required
  • Does Not Affect Sectionality
  • Ceramic Handle Remains Cool
  • All Corrosion Resistant Parts
  • Easy To Install Upgrade System
  • 3 Position Lid Latch and Prop Mechanism
  • Easy View optional accessory






    Electrical Specifications - Skutt KM1231-3PK
    Phase Voltage Amps Max. Cone Cu. Ft. Opening Depth Shipping Weight Copper Wire Size Breaker Size NEMA Receptacle
    1 240 72 10 11.6 28.13" 31" 450 3 90 Direct Wire
    1 208 80 10 11.6 28.13" 31" 450 3 100 Direct Wire
    3 240 44.5
    10 11.6 28.13" 31" 450 6 60 Direct Wire
    3 208 51.5
    10 11.6 28.13" 31" 450 4 70 Direct Wire

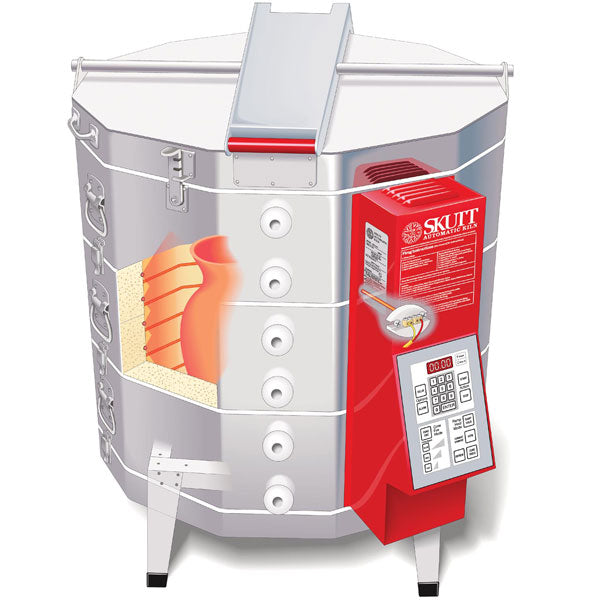

    Skutt Kiln Cutaway   Skutt Kiln Balanced Elements   Skutt Kiln Sectional Design

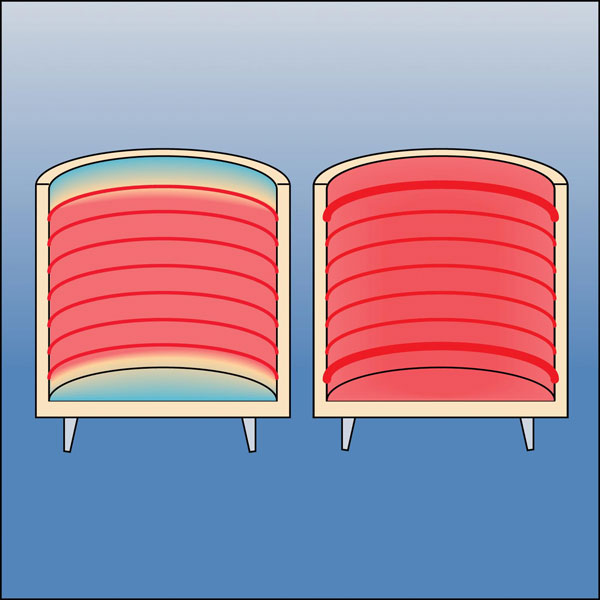

    Skutt Kiln Cutaway   Larger Skutt Kilns use balanced
    elements top to bottom so your
    kiln fires more evenly.

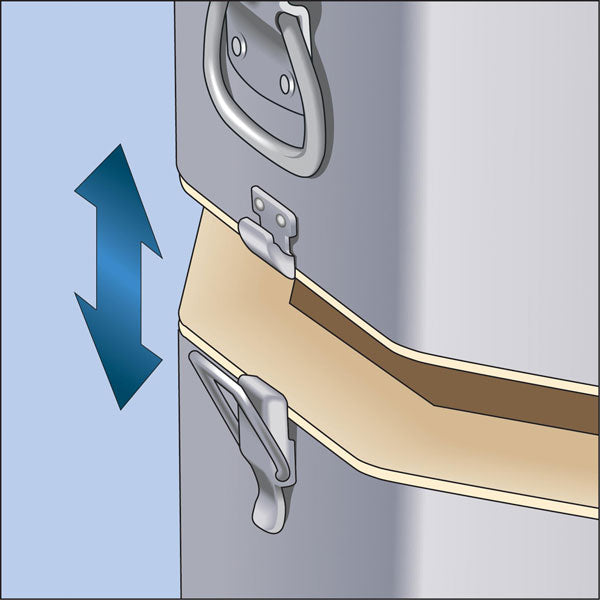

      Skutt Kilns use a sectional
    design to make them easy to
    move and disassemble.

    Skutt Kiln Thermocouples   Skutt Kiln Touchpad Control   Skutt Kiln Room Diagram

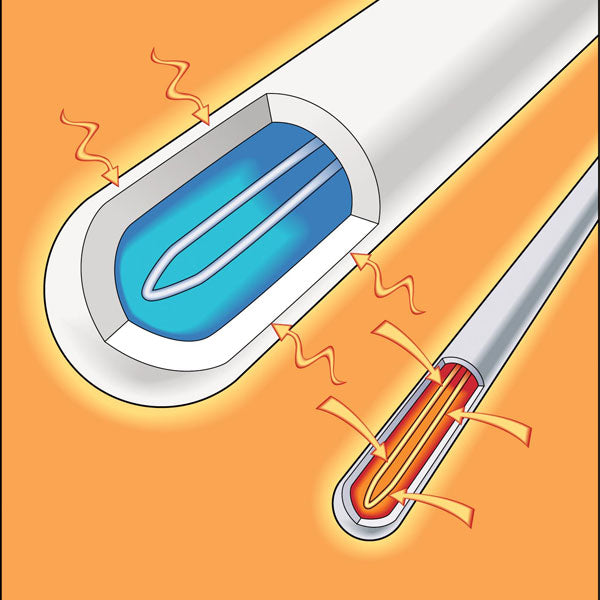

    Skutt Kilns use a Type K
    thermocouple
    (Type S Upgrade Available)

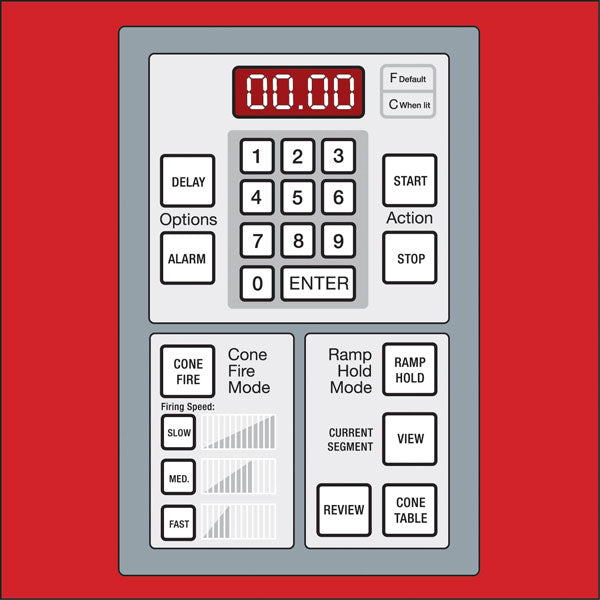

      Skutt Kilns use a Bartlett
    controller that is easy to use
    and has built in programs to
    get you firing right away.
      Plan your kiln room design and
    layout. If you need additional information
    take a look at the PDF downloads above
    for a link to the Skutt Kiln catalog and
    the Architectural Specifications.
