Product Description

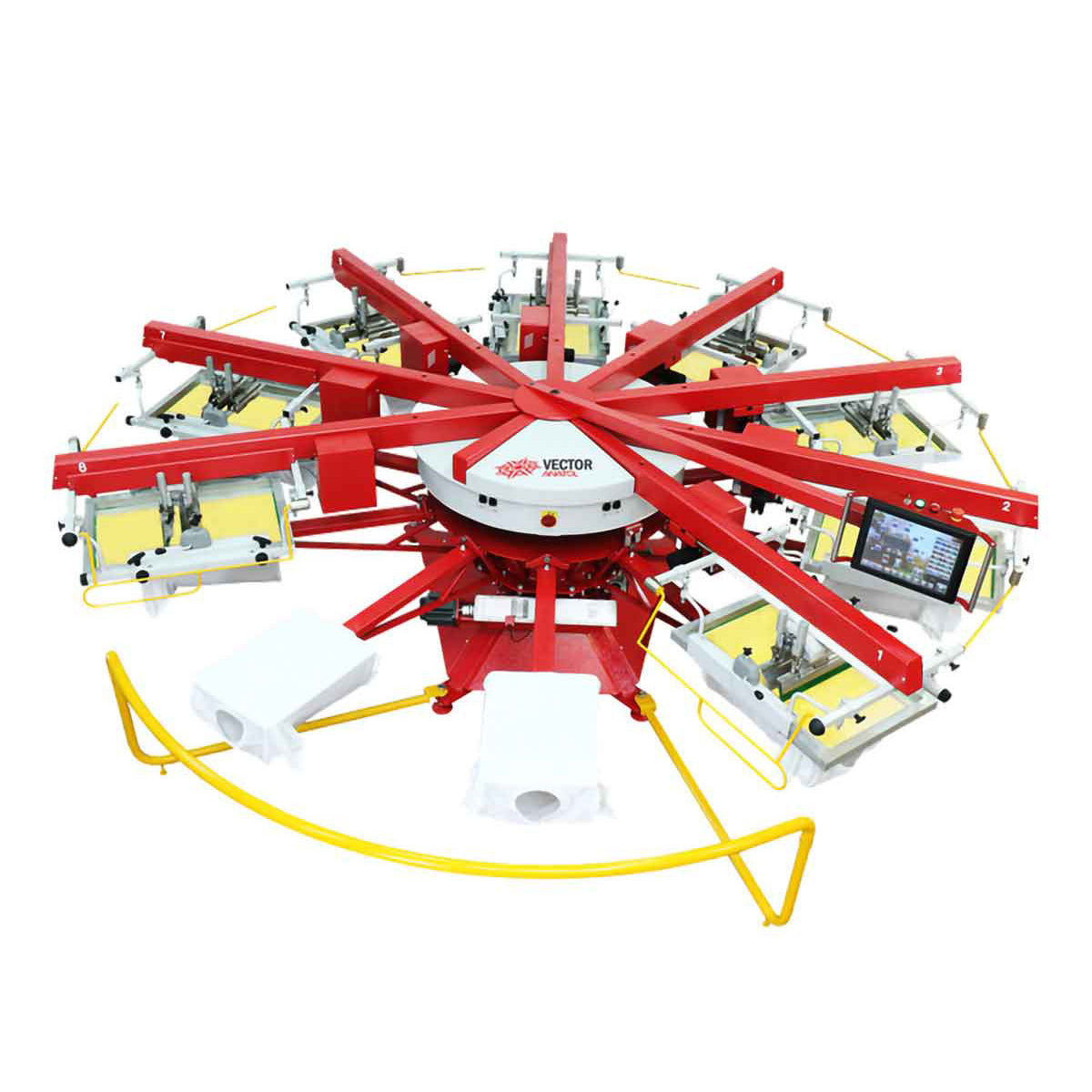

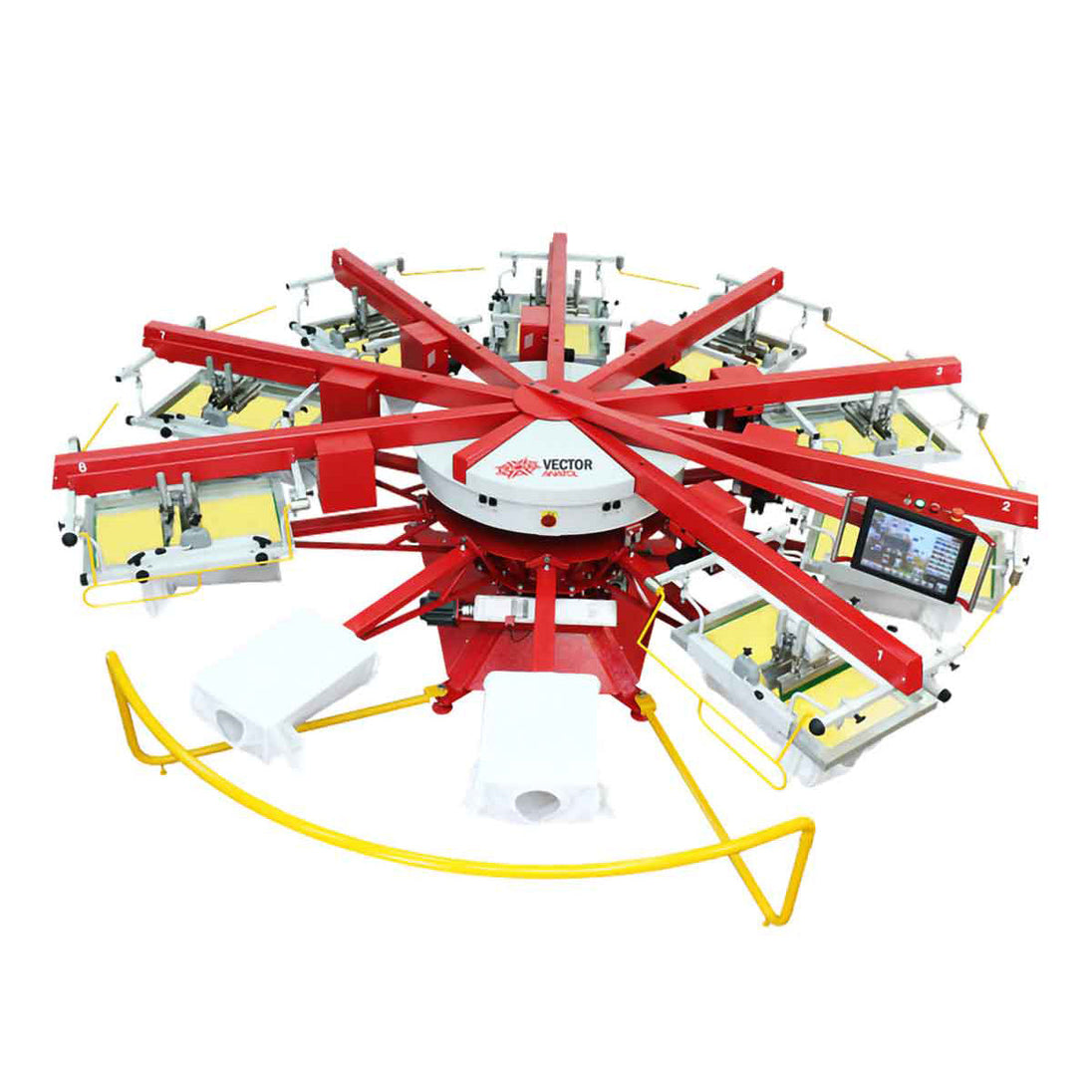

The Vector XL automatic screen printing machine is built with your largest printing challenges in mind. No need to turn away customers with large designs - the Vector XL makes printing images up to 20" x 28" fast, easy and reliable. And like all Vector screen printing machines, it's built to last using less air than any of its competitors, so you don't have to worry about the headaches of pneumatic repairs or the cost of a large air compressor.

The Vector XL screen printing press is available from 6 to 18 colors and is loaded with the features you need to make your biggest jobs a breeze.



Stations
Colors
Maximum
Print Area
Maximum
Screen Size
Standard
Pallet Size
Press
Diameter
Stationary Arm
or Boom
Touchscreen Support
Electrical Requirements Air Requirements @ 90 PSI
08/06 20" x 28"
50.8cm x 71cm
26" x 43"
66cm x 109.2cm
16" x 22"
41cm x 56cm
13'10" Boom 1 ph 208/230v, 50/60 Hz, 14A
3 ph 208/230v, 50/60 Hz, 9A
0.9 SCFM
25 l/min
08/07 20" x 28"
50.8cm x 71cm
26" x 43"
66cm x 109.2cm
16" x 22"
41cm x 56cm
13'10" Boom 1 ph 208/230v, 50/60Hz, 15A
3 ph 208/230v, 50/60 Hz, 10A
1.1 SCFM
30 l/min
10/08 20" x 28"
50.8cm x 71cm
26" x 43"
66cm x 109.2cm
16" x 22"
41cm x 56cm
15' Boom 1 ph 208/230v, 50/60 Hz, 16A
3 ph 208/230v, 50/60 Hz, 11A
1.2 SCFM
34 l/min
10/09 20" x 28"
50.8cm x 71cm
26" x 43"
66cm x 109.2cm
16" x 22"
41cm x 56cm
15' Boom 1 ph 208/230v, 50/60 Hz, 17A
3 ph 208/230v, 50/60 Hz, 12A
1.3 SCFM
38 l/min
12/10 20" x 28"
50.8cm x 71cm
26" x 43"
66cm x 109.2cm
16" x 22"
41cm x 56cm
16'6" Boom 1 ph 208/230v, 50/60 Hz, 18A
3 ph 208/230v, 50/60 Hz, 13A
1.5 SCFM
42 l/min
12/11 20" x 28"
50.8cm x 71cm
26" x 43"
66cm x 109.2cm
16" x 22"
41cm x 56cm
16'6" Boom 1 ph 208/230v, 50/60 Hz, 19A
3 ph 208/230v, 50/60 Hz, 14A
1.6 SCFM
46 l/min
14/12 20" x 28"
50.8cm x 71cm
26" x 43"
66cm x 109.2cm
16" x 22"
41cm x 56cm
18' Stationary Arm 1ph 208/230v, 50/60 Hz, 25A
3 ph 208/230v, 50/60 Hz, 16A
1.8 SCFM
50 l/min
16/14 20" x 28"
50.8cm x 71cm
26" x 43"
66cm x 109.2cm
16" x 22"
41cm x 56cm
19'6" Stationary Arm 3 ph 208/230v, 50/60 Hz, 27A 1.9 SCFM
54 l/min
18/16 20" x 28"
50.8cm x 71cm
26" x 43"
66cm x 109.2cm
16" x 22"
41cm x 56cm
20'10" Stationary Arm 3 ph 208/230v, 50/60 Hz, 30A 2.0 SCFM
58 l/min
20/18 20" x 28"
50.8cm x 71cm
26" x 43"
66cm x 109.2cm
16" x 22"
41cm x 56cm
22'8" Stationary Arm 3 ph 208/230v, 50/60 Hz, 32A 2.2 SCFM
63 l/min
