Product Description

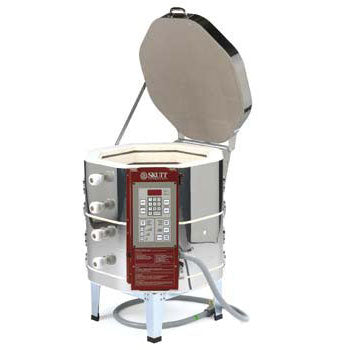

About the Skutt KM822-3

Perfect Small Studio Kiln– Easy to Load

Part of the New 22” Series, the KM822-3 offers 4.5” more height then the KM818. This doesn’t sound like much until you need to add another shelf or want to fire a taller pot or sculpture. Fire a 18” tall piece with all the proper clearances. The 22” height coupled with its Cone 10 capability and small space requirements make it a perfect kiln for the home studio.It comes equipped with the precise control of the KilnMaster Controller making it easy and convenient to operate.

Standard Features
The Skutt KM-822-3 kiln includes the KilnMaster controller built in. Other standard features include:

  • 2 Year limited warranty, elements excluded
  • 3" brick standard for increased efficiency
  • Encapsulated Type K thermocouple
  • Crimp on connectors on feeder wires
  • Larger, swing away air cooled switch box
  • Multi-sided design
  • Stainless steel jacket
  • Sectionalized construction
  • Two lift handles on each section
  • Sealed, dust free lid with full-floating hinge
  • Two types of exposed, pinned elements for optimum balance
  • Reversible top and bottom slabs
  • Stand included
  • Peep plugs included
  • UL Listing



    Please note, 8, 7, 6 and 4 sided kilns do not include a lid lifter system. The lid is not heavy enough to require the extra expense.


    Electrical Specifications - Skutt KM822-3
    Phase Voltage Amps Max. Cone Cu. Ft. Opening Depth Shipping Weight Copper Wire Size Breaker Size NEMA Receptacle
    1 240 33.4 10
    2.9 16.5" 22" 180
    8 50 6-50
    1 208 38.5 10
    2.9 16.5" 22" 180 8 50 6-50

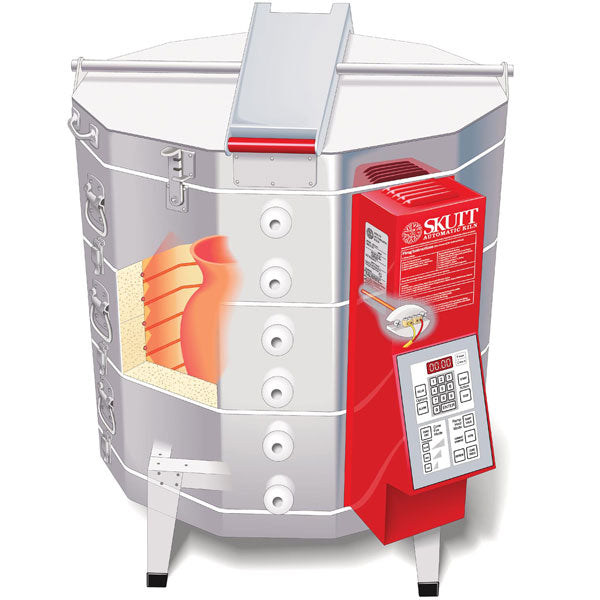

    Skutt Kiln Cutaway   Skutt Kiln Balanced Elements   Skutt Kiln Sectional Design

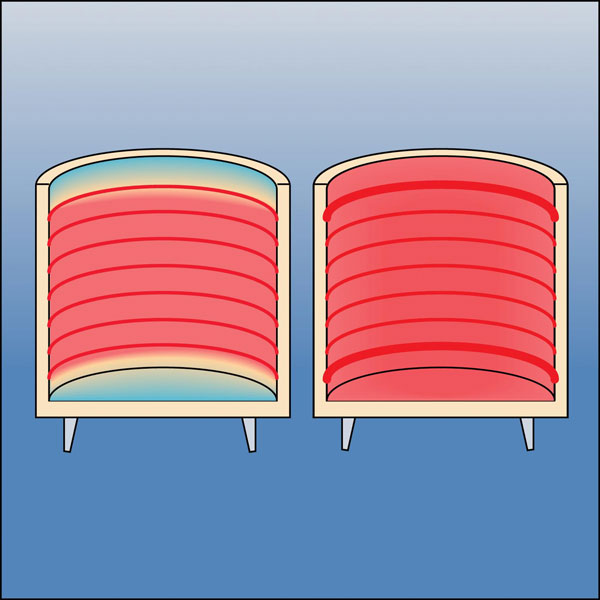

    Skutt Kiln Cutaway   Larger Skutt Kilns use balanced
    elements top to bottom so your
    kiln fires more evenly.

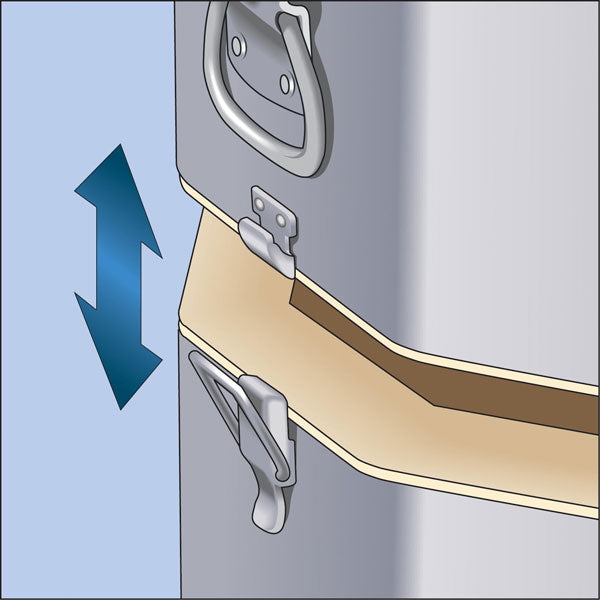

      Skutt Kilns use a sectional
    design to make them easy to
    move and disassemble.

    Skutt Kiln Thermocouples   Skutt Kiln Touchpad Control   Skutt Kiln Room Diagram

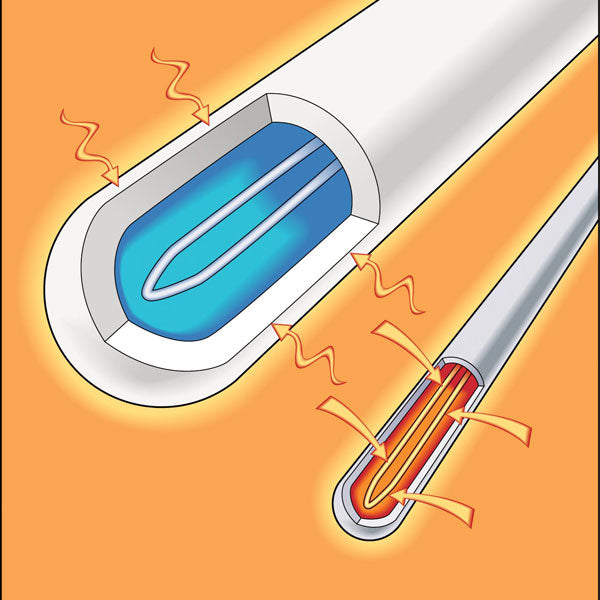

    Skutt Kilns use a Type K
    thermocouple
    (Type S Upgrade Available)

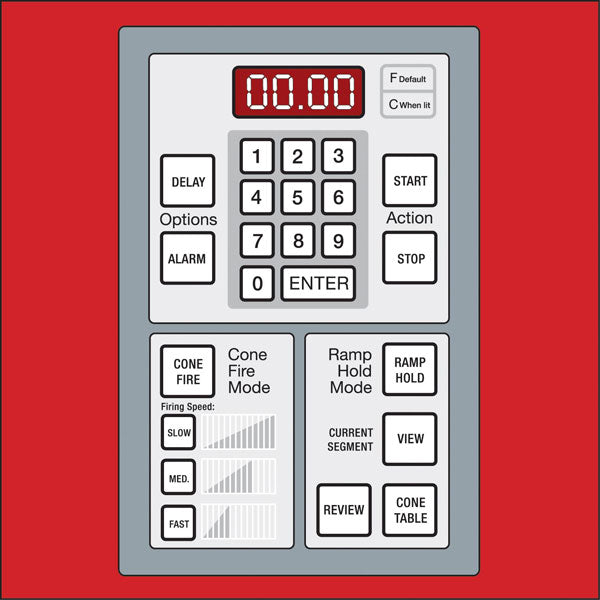

      Skutt Kilns use a Bartlett
    controller that is easy to use
    and has built in programs to
    get you firing right away.
      Plan your kiln room design and
    layout. If you need additional information
    take a look at the PDF downloads above
    for a link to the Skutt Kiln catalog and
    the Architectural Specifications.
