Product Description

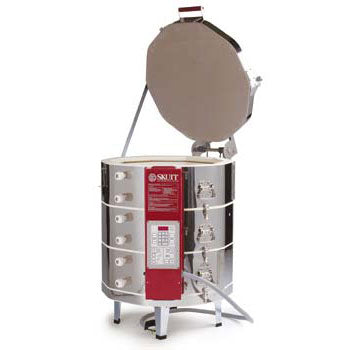

About the Skutt KM1027

Skutt's even-firing powerhouse.

The KM-1027 is known as a real powerhouse because of its large 7 cubic foot capacity and ability to fire to Cone 10. It is a great kiln for those who fire porcelain and stoneware. It has proven to be the most popular model in our KilnMaster line, and has earned a reputation as a kiln which fires evenly at high temperatures over and over again. Again, the addition of the Skutt EnviroVent will help get the most from this kin's automatic firing capabilities. Also available in three phase models.

Standard Features
The Skutt KM-1027 kiln includes the KilnMaster controller built in. Other standard features include:

  • 2 Year limited warranty, elements excluded
  • 2.5" thick brick standard with 3" brick available
  • Encapsulated Type K thermocouple
  • Crimp on connectors on feeder wires
  • Larger, swing away air cooled switch box
  • Multi-sided design
  • Stainless steel jacket
  • Sectionalized construction
  • Two lift handles on each section
  • Sealed, dust free lid with full-floating hinge
  • Two types of exposed, pinned elements for optimum balance
  • Reversible top and bottom slabs
  • Stand included
  • Peep plugs included
  • UL Listing

Skutt Lid Lift System



The New Skutt Lid Lifter

The New Lid Lifter makes Skutt 10 and 12-sided lids some of the lightest on the market. In fact you can now lift them with just a finger. The lid brace has been redesigned for added strength and now has 2 positions. The innovative Center Pivot Design distributes the force on the lid across 2 points as opposed to only one.

It ships fully assembled on the kiln. Unlike some other brands there is no awkward loading of the springs required. The kiln remains completely sectional for moving and repairs. The lid can be effortlessly and safely detensioned by simply raising the lid and sliding out the tension rod. It really is that easy!

  • So Light You Can Lift It With A Finger
  • New Reinforced 2 position lid Brace
  • Innovative Center Pivot Design
  • Ships Fully Assembled
  • No Tension Loading Required
  • Does Not Affect Sectionality
  • Ceramic Handle Remains Cool
  • All Corrosion Resistant Parts
  • Easy To Install Upgrade System
  • 3 Position Lid Latch and Prop Mechanism
  • Easy View optional accessory






    Electrical Specifications - Skutt KM1027
    Phase Voltage Amps Max. Cone Cu. Ft. Opening Depth Shipping Weight Copper Wire Size Breaker Size NEMA Receptacle
    1 240 48 10
    7 23.38" 27" 290 6 60 6-50
    1 208 48 6
    7 23.38" 27" 290 6 60 6-50
    3 240 29.3
    10
    7 23.38" 27" 290 8 40 15-50
    3 208 31.7
    10
    7 23.38" 27" 290 8 40 15-50



    Skutt Kiln Cutaway   Skutt Kiln Balanced Elements   Skutt Kiln Sectional Design

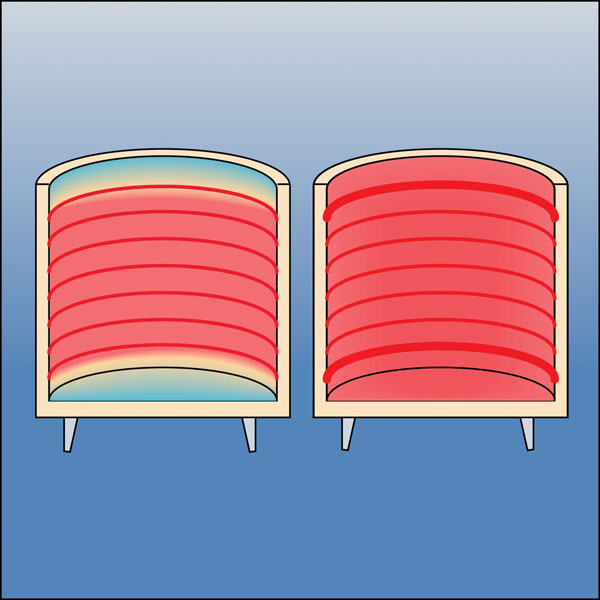

    Skutt Kiln Cutaway   Larger Skutt Kilns use balanced
    elements top to bottom so your
    kiln fires more evenly.

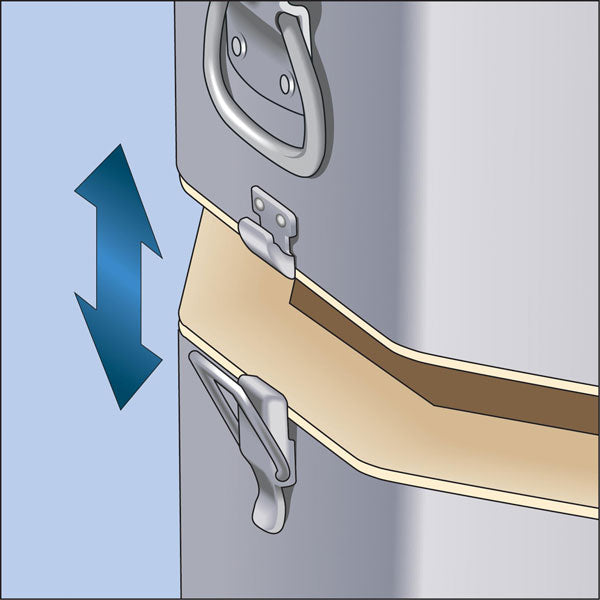

      Skutt Kilns use a sectional
    design to make them easy to
    move and disassemble.

    Skutt Kiln Thermocouples   Skutt Kiln Touchpad Control   Skutt Kiln Room Diagram
    Skutt Kilns use a Type K
    thermocouple
    (Type S Upgrade Available)

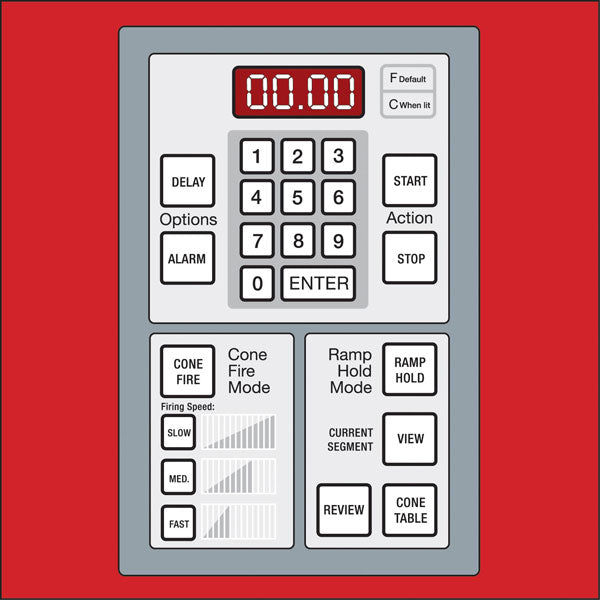

      Skutt Kilns use a Bartlett
    controller that is easy to use
    and has built in programs to
    get you firing right away.
      Plan your kiln room design and
    layout. If you need additional information
    take a look at the PDF downloads above
    for a link to the Skutt Kiln catalog and
    the Architectural Specifications.
