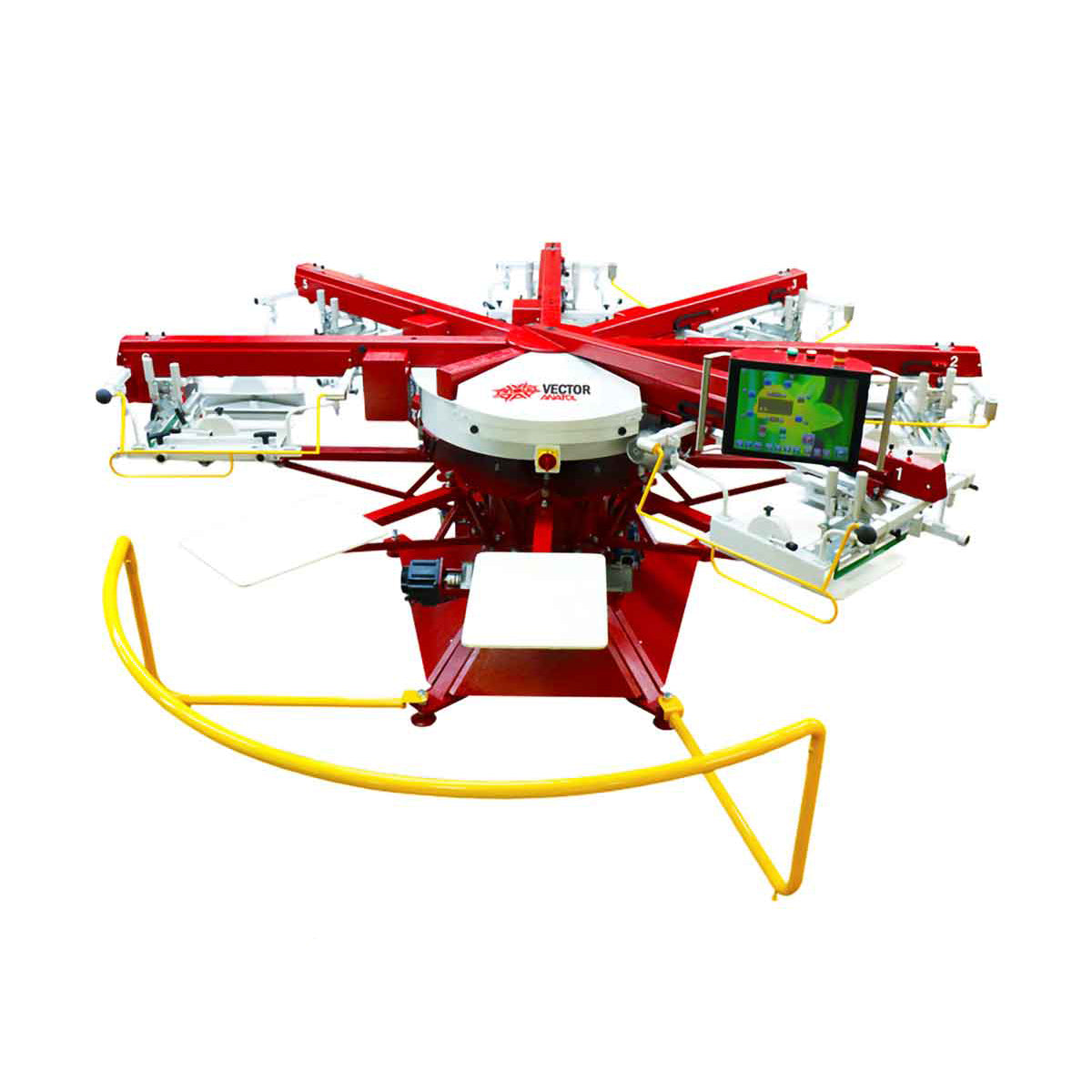

Built for maximum versatility, the Vector M screen printing machine is perfect for screen printing shops of all sizes looking to boost performance and production. Available in configurations from 2 to 12 colors and with a print area of 16" x 18", the Vector M automatic screen printing press will meet the demands of almost any printing job. And with minimum pneumatic requirements, it requires less routine maintenance and a smaller air compressor than any press in its class - ultimately saving you thousands.

If you're looking for a powerful screen printing machine with a compact footprint and state-of-the-art features, the Vector M is the perfect fit.



Stations
Colors
Maximum
Print Area
Maximum
Screen Size
Standard
Pallet Size
Press
Diameter
Stationary Arm
or Boom
Touchscreen Support
Electrical Requirements Air Requirements @ 90 PSI
06/02 16" x 18"
40.6cm x 45.7cm
23" x 33"
58.4cm x 83.8cm
16" x 22"
41cm x 56cm
9'8" Boom 1 ph 208/230v, 50/60 Hz, 11A
3 ph 208/230v, 50/60 Hz, 7A
0.3 SCFM
8.5 l/min
06/03 16" x 18"
40.6cm x 45.7cm
23" x 33"
58.4cm x 83.8cm
16" x 22"
41cm x 56cm
9'8" Boom 1 ph 208/230v, 50/60 Hz, 12A
3 ph 208/230v, 50/60 Hz, 8A
0.5 SCFM
13 l/min
06/04 16" x 18"
40.6cm x 45.7cm
23" x 33"
58.4cm x 83.8cm
16" x 22"
41cm x 56cm
9'8" Boom 1 ph 208/230v, 50/60 Hz, 13A
3 ph 208/230v, 50/60 Hz, 8A
0.6 SCFM
17 l/min
06/05 16" x 18"
40.6cm x 45.7cm
23" x 33"
58.4cm x 83.8cm
16" x 22"
41cm x 56cm
9'8" Boom 1 ph 208/230v, 50/60 Hz, 14A
3 ph 208/230v, 50/60 Hz, 9A
0.7 SCFM
21 l/min
08/06 16" x 18"
40.6cm x 45.7cm
23" x 33"
58.4cm x 83.8cm
16" x 22"
41cm x 56cm
10'11" Boom 1 ph 208/230v, 50/60 Hz, 14A
3 ph 208/230v, 50/60 Hz, 9A
0.9 SCFM
25 l/min
08/07 16" x 18"
40.6cm x 45.7cm
23" x 33"
58.4cm x 83.8cm
16" x 22"
41cm x 56cm
10'11" Boom 1 ph 208/230v, 50/60 Hz, 15A
3 ph 208/230v, 50/60 Hz, 10A
1.1 SCFM
30 l/min
10/08 16" x 18"
40.6cm x 45.7cm
23" x 33"
58.4cm x 83.8cm
16" x 22"
41cm x 56cm
12'3" Boom 1 ph 208/230v, 50/60 Hz, 16A
3 ph 208/230v, 50/60 Hz, 11A
1.2 SCFM
34 l/min
10/09 16" x 18"
40.6cm x 45.7cm
23" x 33"
58.4cm x 83.8cm
16" x 22"
41cm x 56cm
12'3" Boom 1 ph 208/230v, 50/60 Hz, 17A
3 ph 208/230v, 50/60 Hz, 12A
1.3 SCFM
38 l/min
12/10 16" x 18"
40.6cm x 45.7cm
23" x 33"
58.4cm x 83.8cm
16" x 22"
41cm x 56cm
13'6" Boom 1 ph 208/230v, 50/60 Hz, 18A
3 ph 208/230v, 50/60 Hz, 13A
1.5 SCFM
42 l/min
12/11 16" x 18"
40.6cm x 45.7cm
23" x 33"
58.4cm x 83.8cm
16" x 22"
41cm x 56cm
13'6" Boom 1 ph 208/230v, 50/60 Hz, 19A
3 ph 208/230v, 50/60 Hz, 14A
1.6 SCFM
46 l/min
14/12 16" x 18"
40.6cm x 45.7cm
23" x 33"
58.4cm x 83.8cm
16" x 22"
41cm x 56cm
15'7" Boom 1ph 208/230v, 50/60 Hz, 25A
3 ph 208/230v, 50/60 Hz, 16A
1.8 SCFM
50 l/min
